• Compact, no external controllers
  • Fast Measurement and High Accuracy
  • RS232, USB, Analog, Relay (limits) interface (Ethernet, parallel upon request)
  • 670 nm Class I laser diode
  • Optional Touch OLED display with Intuitive  User Interface
  • Custom Modes Available
Measurement Range 2.0″ (50.75 mm)
Resolution 0.4375 µm
Repeatability 10 µm (Edge Position, Calibrated Distance)
Response Time 0.712 ms
Non-Linearity < 15 µm (Edge Position, Calibrated Distance)
Measuring Modes Edge1, Edge2, Diameter, Gap, Center, Solid
I/O Connectors DB9, DB25, DB37, Mini-B USB, RJ-45, or custom
I/O Interface Serial (RS232), Analog (Voltage), Parallel Binary (TTL), USB, Ethernet, 4 Relays or OC Transistors (NPN), 2 Optocoupler Inputs
Power 18 to 24VDC / 300 mA
Display (optional) Touch OLED

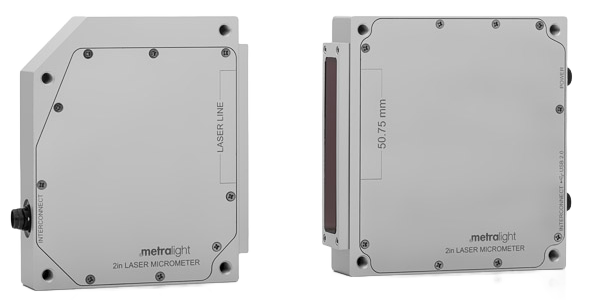

Overall Dimension Emitter: 4.72″ x 3.74″ x 0.98″ (120 x 95 x 25 mm), Receiver: 4.72″ x 4.33″ x 0.98″ (120 x 110 x 25 mm)
Weight 21.1 oz (344 g)
Operating Temperature 32ºF to 122ºF (0ºC to 50ºC)
Storage Temperature -4ºF to 158ºF (-20ºC to 70ºC)

2in User’s Guide (PDF)

To download the latest version of MicroStudio please visit MicroStudio page.
