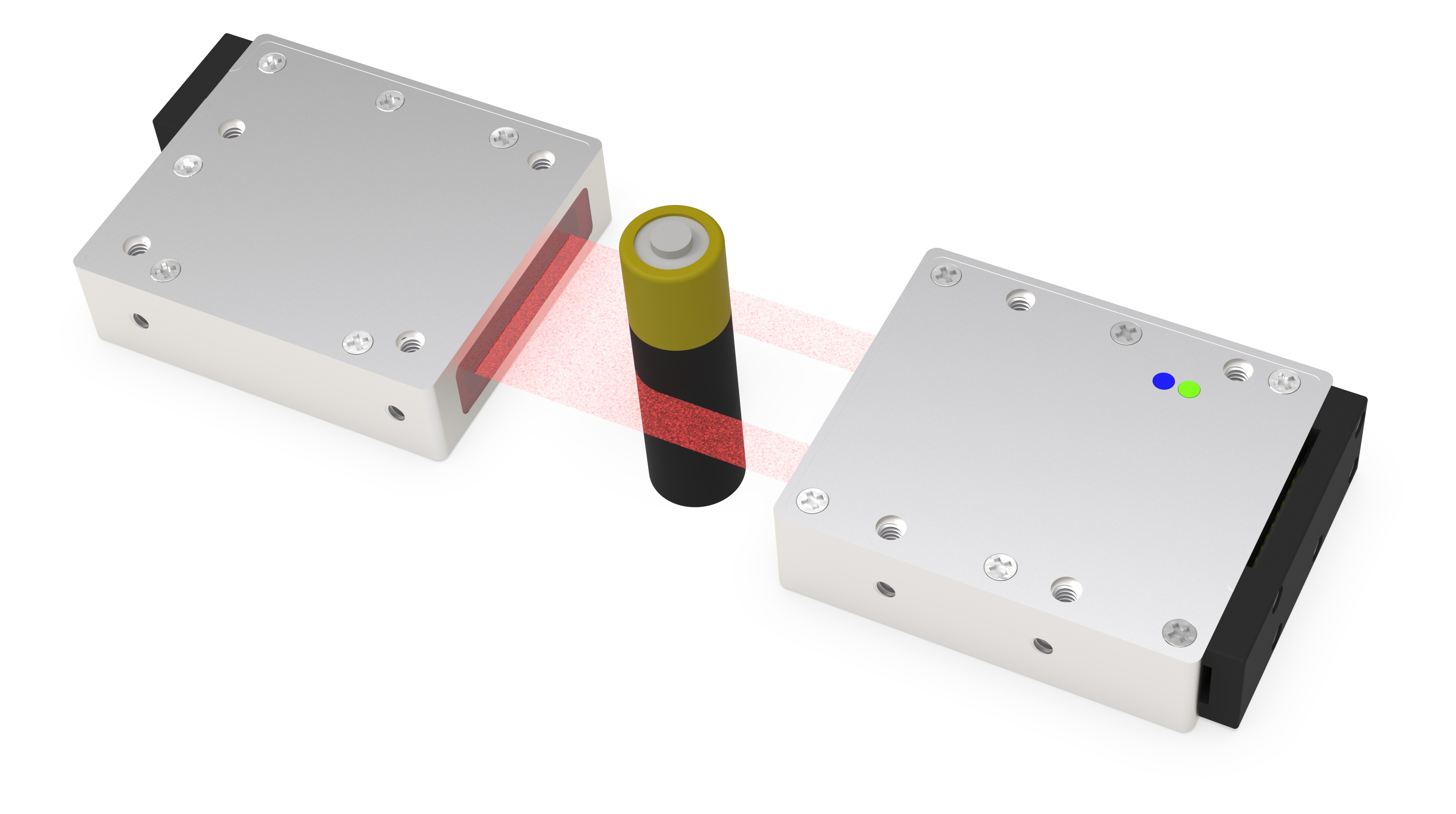

• levný a kompaktní laserový mikrometr
  • vysoké rozlišení (až 0.4375 µm)
  • rychlé měření
  • laserová dioda 670 nm Class I
  • rozhraní: USB, paralelní, analogové a RS232 (SPI, I2C na vyžádání)
  • dostupné uživatelské módy (např. Centering, MInimum, Maximum, ..)
Measurement Range 1.10″ (28 mm)
Resolution 7 µm  (RX07) / 3.5 µm (RX03)
Repeatability 14 µm (Edge Position, Calibrated Distance)
Response Time 0.391 ms
Measurement Speed 2,500 measuremets/s
Non-Linearity 0.2% of Full Range
Power 12 to 24 VDC / 80mA or USB Port Power
Connection 24 Pin Double-Row, 2mm or MINI USB
Interface Parallel Binary (TTL) / Serial (RS232) / Analog Output or USB
Indicators Green LED = Sensor ON; Blue LED = Object Present
Overall Dimension 2.30” x 2” x 0.60” (58.4 mm x 50.8 mm x 15.2 mm)
Weight 6.7 oz (192 g)

RX03/RX07 Rev. B User’s Guide (PDF)

RX03/RX07 Rev. C User’s Guide (PDF)

Ke stažení poslední verze programu MicroStudio navštivte prosím stránku MicroStudio.
